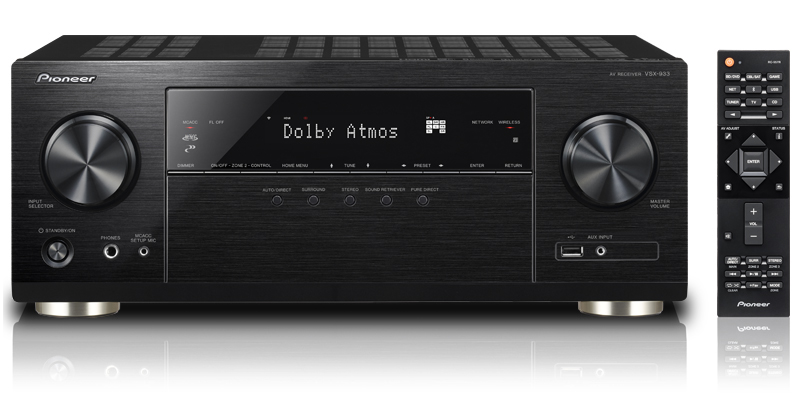

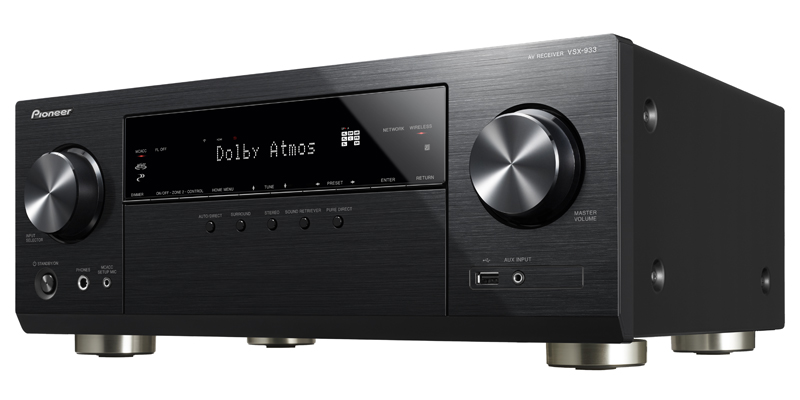

VSX 933 (B)

7.2-ch Network AV Receiver
  • Dolby Atmos®/Dolby Surround Upmixing
  • DTS:X®/DTS Neural:X Upmixing
  • Supports pass-through for HDR10, HLG (Hybrid Log-Gamma), and Dolby Vision signals
  • 165 W/ch (6 ohms, 1 kHz, THD 10 %, 1ch Driven)
  • 80 W/ch (8 ohms, 20 Hz-20 kHz, THD 0.08 %, 2ch Driven, FTC)
  • Google Chromecast Built-in
  • Sonos ready, Built in Bluetooth, Built in Wifi

PRICE :

Rs. 65900

Immerse yourself in the 5.2.2ch surround sound created by Dolby Atmos® or DTS:X® and optimally adjusted by MCACC, while the spectacle of Ultra HD video, HDR10, HLG, and Dolby Vision™ unfolds before your eyes. FlareConnect™ lets you enjoy wireless multi-room audio with smooth control on the Pioneer Remote App, from various sources including vinyl records. With Chromecast built-in and DTS Play-Fi®, you can play music from internet radio and network streaming services on the VSX-933 using your smartphone.

Works with Sonos

With Sonos Connect, the awesome home theater you’ve built around your Pioneer receiver can now be part of your existing Sonos Home Sound System, or the start of a new one. Instantly upgrade the music streaming capability of your home theater with Sonos Connect and a free firmware update. After a simple set up, your Pioneer A/V receiver will seamlessly tie into Sonos, instantly waking, changing inputs and playing at the volume you command through the familiar Sonos app.
Learn More http://sonos.pioneerhomeusa.com/

Dolby Atmos®/Dolby Surround Upmixing

The VSX-933 is compatible with 5.2.2ch configuration of the latest theater sound platform, Dolby Atmos. You can reproduce object-oriented sound in smooth, curving movements, or the realistic three-dimensional movement overhead by the top speakers. Other audio codecs including DTS formats can now be upmixed using Dolby Surround for enjoying 3D surround sound.

DTS:X®/DTS Neural:X Upmixing

DTS:X is the next-generation audio codec from DTS that leverages object-based audio to enable new immersive and interactive audio experiences. Since DTS:X can automatically adapt the audio to the existing channels and speaker system, no specific speaker layout is required. Experience an immersive soundscape with incredibly rich and life-like audio. Other audio codecs including Dolby formats can now be upmixed using DTS Neural:X for enjoying 3D surround sound.

Next Generation Video Standard Ready

The VSX-933 supports pass-through for HDR10, HLG (Hybrid Log-Gamma), and Dolby Vision signals. By connecting a compatible source device, you can enjoy these latest video standards on a compatible display. What’s more, all HDMI terminals support 4K (60p/4:4:4/24-bit), Wide Color Gamut (BT.2020), and HDCP 2.2, so you will have no problem when upgrading to new devices, and can also enjoy premium content such as 4K videos with digital copy protection.

MCACC Auto Room Tuning

Create the optimum acoustic environment with Pioneer’s MCACC (Multi-Channel Acoustic Calibration System), developed with the expertise of professional recording studios. With the custom microphone, the system automatically compensates for differences in speaker size, level and distance, and equalizes response.

Synchronized Sound with Phase Control

As an innovative solution for the phase lag between the subwoofer and the main channel speakers caused by the bass management filter, Phase Control compensates the delayed bass to improve sound synchronization.

Powered Zone 2

Take advantage of Powered Zone 2 speaker outputs to enjoy audio in a second room. Play a source in Zone 1 (Main) and Zone 2, for simultaneous audio playback in both rooms, or play a different audio source in each zone at the same time.

Reflex Optimizer

When using Dolby Atmos-enabled speakers, high directivity sound from the unit reflects off the ceiling, while low directivity sound directly reaches the ears. The different pathways cause a phase shift, making the sound feel uncomfortable. The Reflex Optimizer which uses the Phase Control technology adjusts this shift, and improves the localization of the sound image by aligning the frequencies with those of the floor speakers, creating the ideal reproduction environment.

Multi-room Audio Offers a Variety of Ways to Enjoy Music

FlareConnect™* shares audio from network and external audio input sources between compatible components. Enjoy effortless multi-room playback of LP records, CDs, network music services, and more with supported components and speaker systems. Music selection, speaker grouping, and playback management across the home are built into the Pioneer Remote App**.
* External audio inputs supporting FlareConnect may differ depending on model. Please consult individual product specification for more information.
** Download free from the App Store or Google Play.

Chromecast built-in

The VSX-933 comes with Chromecast built-in, so you can use your mobile device to stream your favorite music, radio, or podcasts to your speaker. You can control the audio from anywhere in the house using Chromecast enabled apps running on your personal device—iPhone, iPad, Android phone and tablet, Mac and Windows laptop, and Chromebook™. The VSX-933 also works with Google Assistant, so you can give voice commands via Google Assistant built-in devices such as Google Home to operate the AV receiver without lifting a finger. Discover Chromecast-enabled apps at google.com/cast/apps.

DTS Play-Fi®

DTS Play-Fi wirelessly streams any audio content from any compatible mobile device to the VSX-933 and DTS Play-Fi compatible audio systems, creating a multi-room system in your home. You can stream different sources to different speakers at the same time from the Pioneer Music Control App*.
* Download free from the App Store or Google Play

SPECS

POWER
  • Amplifier Design
  • Discrete Direct Energy
  • Channels
  • 7.2
  • Power Output: Watts per Channel (20Hz-20kHz,.08%THD@8ohm 2ch Driven)
  • 480 W/ch
  • Power Output: Watts per Channel (1kHz,10%THD@6ohm 1ch Driven)
  • 165 W/ch
  • Estimated Power Consumption/Network Standby off
  • 460 W/0.15 W
HANDHELD AND INTERNET
  • AirPlay
  • Yes
  • HTC Connect
  • Made for iPhone and iPod
  • iOS/Android Remote Control APP
  • Pioneer Remote App
  • Chromecast built-in
  • Yes
  • Spotify Connect
  • Yes
  • TIDAL Music Streaming Service Ready
  • Yes
  • Amazon Music
  • Yes
  • Streaming Audio From PC/Network
  • Yes
  • Pandora Internet Radio
  • Yes
  • Internet Radio
  • Yes
DECODERS & FORMATS
  • Digital Core DSP Engine
  • Digital Quad-Core 32-bit DSP (Cirrus Logic)
  • Audio DACs
  • 384 kHz/32-bit D/A Conversion with AK4458 (AKM)
  • Audio Processing
  • iPod Digital Audio
  • Music File Playback
  • 192 kHz/24-bit ALAC, AIFF, FLAC, WAV Via USB
  • High-Definition Copy Protection (HDCP)
  • 2.2
  • Dolby Atmos
  • Yes
  • Dolby TrueHD
  • Yes
  • Dolby Digital Plus
  • Yes
  • DTS:X
  • Yes
  • DTS-HD Master Audio
  • Yes
  • DTS Neural:X
  • Yes
  • DTS Neo:X
  • HDMI SACD Transfer
  • 2 Channel
SOUNDFIELD CALIBRATION
  • Phase Control
  • Yes
  • MCACC
  • Yes
  • MCACC Memory
  • 1
  • Standing Wave Control
  • EQ Bands
  • 9-Band
  • Symmetric EQ
  • Yes
  • X-Curve
  • Distance Adjustment
  • 0.1 feet
  • Polarity Check
  • Auto Subwoofer Crossover
  • Yes
LISTENING MODES
  • Auto Surround
  • Yes
  • Stream Direct
  • Yes (Direct, Pure Direct)
  • Advanced Surround
  • 10+1
  • Wide Surround
  • Front Stage Surround Advance
  • Yes
  • Headphone Surround
  • Virtual Speakers
AUDIO FEATURES
  • Dialog Enhancement
  • Advanced Sound Retriever
  • Yes
  • DSD Music File
  • 2ch:2.8MHz/5.6MHz Multi:2.8MHz
  • Sound Retriever AIR
  • Digital Noise Reduction
  • Tone Control
  • Multi
  • Sound Delay (Lip Sync)
  • Yes
  • Speaker A/B
  • Bi-Amp
  • Yes
VIDEO PROCESSING
  • 4K Ultra HD Pass-Through
  • Yes (HDR10, HLG and BT.2020 Wide Color Gamut Signal Pass-through)
  • 4K Ultra HD Video Scaler
  • Ultra HD Upscaling
  • 3-D Ready
  • Yes
  • Audio Return Channel
  • Yes
  • HDMI Standby Through
  • Yes with Input Switch / Last Memory
  • HDMI 36-bit Deep Color
  • Yes
  • HDMI x.v. Color
  • Yes
  • Video Processor
  • Video Converter to HDMI
  • Yes
  • HDMI to HDMI Video Scaler
  • 480i to 480p
  • Component Video Scaler
  • Composite Video Scaler
  • Pure Cinema I/P Converter
  • Advanced Video Adjustment
  • 3D Noise Reduction
  • Super Resolution
  • Yes
CONNECTIVITY
  • HDMI Input / Output
  • 6 In (Rear) / 1 Out
  • MHL 2
  • Wi-Fi Built-In
  • Yes (Dual Band 5 GHz/2.4 GHz)
  • Bluetooth Built-In
  • Yes (Version: 4.1 + LE, Profile: A2DP 1.2/ AVRCP 1.3, Codec: SBC/AAC)
  • Wireless Adapter Port
  • Bluetooth Adapter Port
  • Component Video Input / Output
  • 1 In
  • Composite A/V Input / Output
  • 2 In
  • iPhone / iPod / USB Memory Input
  • USB Terminal
  • Front and Rear
  • Ethernet Input
  • Yes
  • Analog Audio Inputs / Output
  • 2 in / 0 out
  • Digital Audio Inputs / Output
  • 2 In (Optical 1, Coaxial 1)
  • Pre-Amp Output
  • 0.2 ch.
  • Headphone Output
  • Yes

  • Front A/V Inputs
  • USB / 3.5mm stereo mini jack
  • AM/FM Presets
  • AM/FM Tuner 40 Presets
  •
INSTALLATION
  • On-Screen Display
  • GUI with System/Network Setup Menu
  • Auto Power Down
  • Yes
  • Multi-Room and Source Output
  • IR Serial Remote In/Out
  • Multi-Zone On-Screen Display
  • FL Dimmer
  • Yes
  • Function Rename
  • Remote
  • Yes
  • Sleep Timer
  • Yes
  • Versatile Speaker Configuration
  • FRONT, CENTER, SURROUND, SURROUND BACK/HEIGHT/ Bi-AMP, ZONE 2
CONSTRUCTION
  • Front Panel
  • Brushed
  • Speaker Terminals
  • 9 large
WARRANTY
  • Warranty
  • 1 Year Parts & Labor
DIMENSIONS
  • W x H x D (inches)
    Wi-Fi Antenna’s Up
  • W x H x D (inches)
  • 17.13 x 6.81 x 14.56
  • Weight
  • 20.7
